Electric Remote-Controlled Crawler Chassis: All-Terrain Mobility Solution for Industrial, Agricultural & Rescue Applications

As industries evolve, the demand for electric remote-controlled crawler chassis has surged, especially for operations across mud, gravel, steep slopes, and rough terrain. Traditional wheeled vehicles struggle with slippage and getting stuck, while fuel-powered crawlers suffer from high noise, emissions, and costly maintenance. The modern all-terrain electric crawler base addresses these pain points, delivering eco-friendly performance, robust durability, and intelligent wireless control for diverse sectors worldwide.

What Is an Electric Remote-Controlled Crawler Chassis?

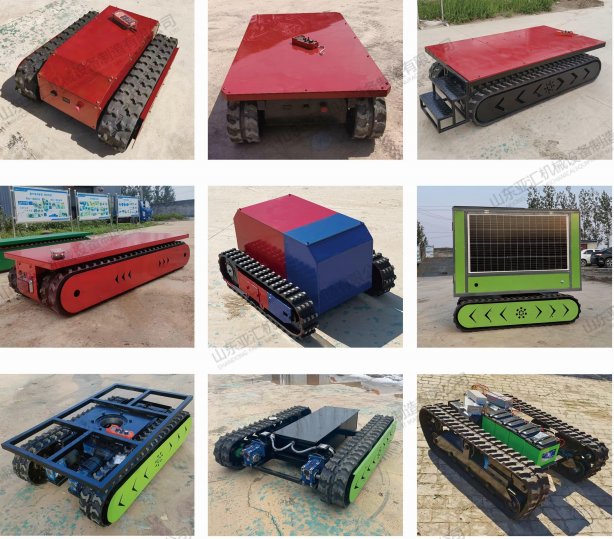

A custom electric crawler chassis is a heavy-duty, modular mobility platform built for complex environments. Designed with a Q235 high-strength carbon steel frame, it features a black framework structure that ensures rigidity and long-term reliability. Its core advantage lies in the reinforced rubber crawler with embedded steel plates and deep treads, which provides exceptional traction and low ground pressure—preventing sinking on soft ground and enabling smooth movement on uneven surfaces.

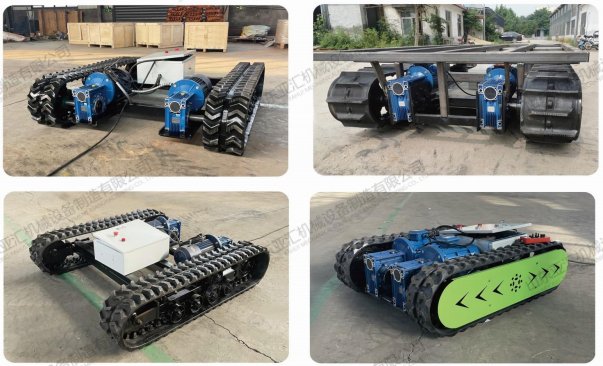

Powered by dual DC brushless motors paired with RV reducers, the chassis offers stable, efficient power output. Operators benefit from stepless speed regulation, allowing precise speed adjustment for different tasks. Voltage options include 48V and 72V, with battery choices of lead-acid or lithium-ion to match operational needs.

Key Features of the Modular Electric Crawler Chassis

• High Traversal Capability: Deep-groove rubber crawlers with steel reinforcement deliver superior grip on mud, sand, rocks, and steep slopes, making it a top choice for off-road electric crawler vehicles.

• Modular & Easy Maintenance: Core components (motors, reducers, track wheels, tensioners) are designed for quick disassembly and replacement, reducing downtime and maintenance costs.

• Wireless Remote Operation: Equipped with an intuitive industrial wireless remote controller, the chassis supports one-click start/stop, forward/reverse, left/right turn, and optional lift/lower functions. Emergency stop buttons on both the chassis and remote ensure maximum safety.

• Customizable Design: Dimensions, load capacity, and configurations are fully customizable. Choose 140mm support wheels for light-duty tasks (≤300kg) or 180mm wheels for heavy-duty applications (≤500kg), catering to unique project requirements.

• Eco-Friendly & Cost-Effective: Zero emissions, low noise, and no fuel consumption align with global green energy trends. Simple maintenance (regular cleaning and lubrication) further lowers long-term operational costs.

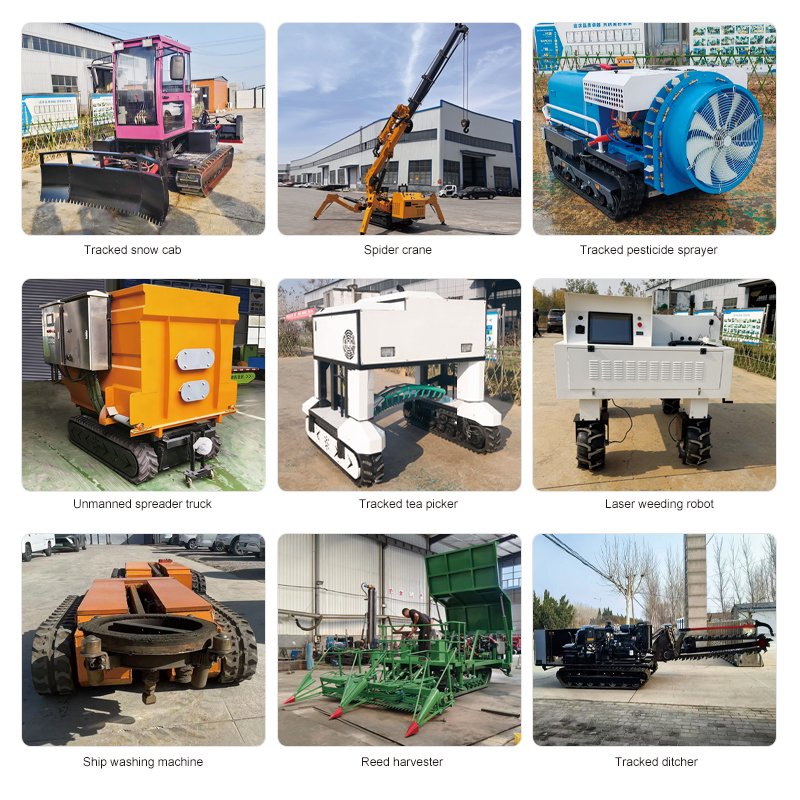

Main Applications of the Electric Crawler Chassis

This versatile remote-controlled crawler platform serves as a reliable foundation for multiple industries:

• Agriculture: Ideal for orchard trenching, farm fertilization, greenhouse maintenance, and livestock ranch patrols, navigating uneven farmland with ease.

• Construction & Mining: Supports on-site material transport, tunnel excavation assistance, and mine exploration, operating stably on rough construction sites.

• Emergency Rescue: Critical for earthquake rubble search, flood relief supply delivery, and post-disaster recovery missions, providing mobility in disaster-stricken areas.

• Security & Special Operations: Used for border patrol, surveillance, anti-terrorism explosive disposal, and field reconnaissance, ensuring safe movement in high-risk environments.

Safety & Maintenance Tips for Long-Term Use

To maximize the lifespan of your electric crawler chassis, follow these guidelines:

• Pre-Operation Check: Ensure battery level is above 30% before use; inspect crawler tension (standard sag: 5–8mm at no load) and wheel alignment.

• Daily Maintenance: Clean mud and debris from drive wheels, support wheels, and bearings after each use; inspect crawler wear every 5 hours.

• Regular Lubrication: Apply silicone-based grease quarterly (avoid butter) to crawlers and bearings for smooth operation.

• Long-Term Storage: Loosen crawler tension, apply anti-rust oil to the frame, and store in a dry environment; keep batteries charged to avoid damage.

Conclusion

The electric remote-controlled crawler chassis is the ultimate all-terrain mobility solution, combining eco-friendly electric power, rugged durability, intelligent remote control, and low maintenance. It overcomes the limitations of traditional wheeled and fuel-powered equipment, becoming an essential tool for modern agriculture, construction, emergency rescue, and security operations.

As a professional manufacturer of custom electric crawler chassis and all-terrain mobility solutions, we deliver high-quality, tailored products to meet diverse global needs. For more details on specifications, customization, and technical support, contact our expert team today.
