Curbstone forming machine
- One-time Forming, High EfficiencyIntegrated feeding, vibrating and molding, fast construction speed, improve project progress greatly.
- Adjustable Multi-specificationMold size can be adjusted freely to make different sizes of curb stone and gutter.
- High Density & Smooth FinishHigh-frequency vibration makes concrete compact, neat edge and smooth surface without secondary trimming.
- Labor & Cost SavingNo precast mold needed, reduce manual work and cut construction cost effectively.
- Flexible & DurableEasy to move on site, solid body structure, low failure rate and long service life.
his concrete curb forming machine is specially designed for continuous on-site molding of highway, road and garden curb stones, roadside stones and gutter stones.
It adopts integrated design of high-frequency vibration and spiral extrusion, which can complete material feeding, compaction, molding and surface finishing in one time. No need for prefabrication and manual assembly, greatly saving labor cost and construction period.
The machine features stable running, high molding density and smooth finished surface. It can freely adjust molding width and height to produce various specifications of curb stone, side walk edge and drainage ditch.
With compact structure, flexible moving and easy operation, it is widely applicable for highway construction, urban road renovation, residential community greening and municipal engineering projects.

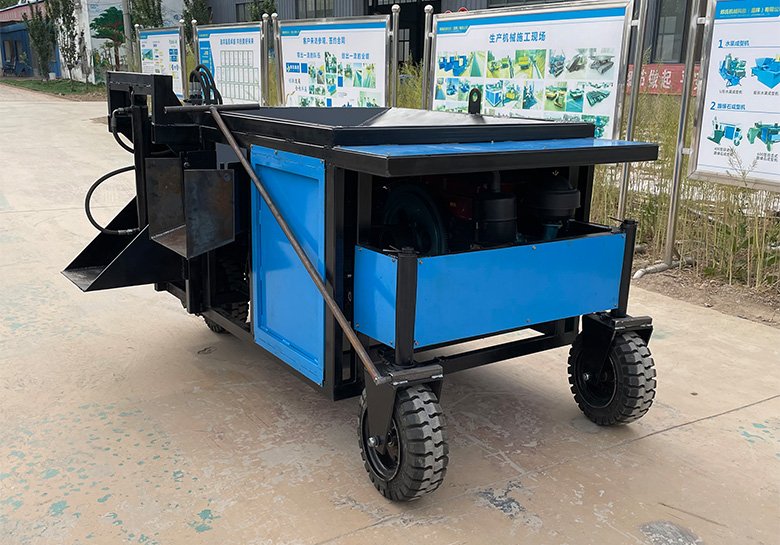

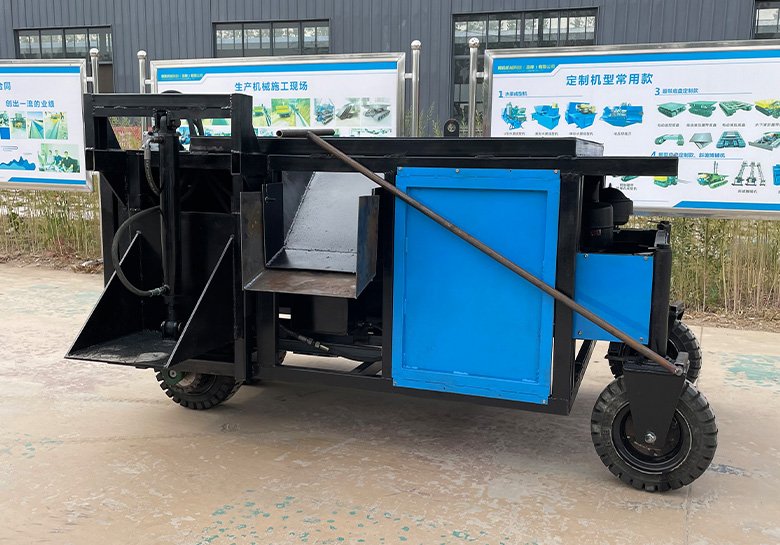

400-type self-propelled curbstone forming machine
| Overall dimensions | 2280x1280x1100mm |
| Total weight of the machine | 1200kg |
| Matching power | 1100 Diesel Engine (10kw Generator Set) |
| Sizes of curbstone that can be made | Height within 400mm, width within 600mm |
| Vibration method | Vibrating poker |
| Tires | Solid engineering tires with a diameter of 400mm |
| Lifting method of the mold | Hydraulic lifting |
| Working speed | 0-12.5m/min |
| Direction control | Manual control |
600-type self-propelled curbstone forming machine
| Overall dimensions | 2280x1500x1100mm |
| Total weight of the machine | 1500kg |
| Matching power | 1115 Diesel Engine (15kw Generator Set) |
| Sizes of curbstone that can be made | Height within 400mm, width within 800mm |
| Vibration method | Vibrating poker |
| Tires | Solid engineering tires with a diameter of 400mm |
| Lifting method of the mold | Hydraulic lifting |
| Working speed | 0-12.5m/min |
| Direction control | Can be controlled by computer sensors or mobile phones |
1000-type wheeled curbstone forming machine
| Overall Dimensions | 500021502470mm |
| Total Machine Weight | 4000kg |
| Matched Power | Weichai (30kW generator set) |
| Sizes of Curbstones that Can Be Produced | with a height of less than 400mm and a width of less than 430mm |
| Vibration Compaction Method | Frequency-conversion vibrating rod |
| Tires | Solid tires dedicated to the transfer machine (Choose either 8-wheel or 4-wheel option) |
| Paving Speed | 0-30 meters per minute |
| Direction Control | It can be controlled by computer sensors or manually |
| Travel Control | Electromagnetic speed regulation (the motor power is 7.5kW/11kW) |
| Mixing Capacity | 24kg |
| Feeding Method | Screw hydraulic feeding |
| Features of This Machine | All control methods of this machine are electrically controlled |
2000-type wheeled curbstone forming machine
| Overall Dimensions | 5200x1860x2450mm |
| Total Machine Weight | 6500kg |
| Matched Power | 4105 diesel engine (50kw generator set) |
| Sizes of Curbstones that Can Be Produced | With a height within 600mm and a width within 1500mm |
| Vibration Method | Vibrating rod |
| Tires | Solid tires dedicated to the loader (Optional: 8 - wheel or 4 - wheel) |
| Mold Lifting Method | Hydraulic output, four - way lifting adjustment |
| Working Speed | 0 - 12.5m/min |
| Direction Control | Can be controlled by computer sensor or mobile phone |
| Travel Control | Electromagnetic speed regulation |
| Chassis | Special four - wheel drive axle for new trucks |
| Feeding Method | Screw hydraulic feeding |
