Water channel forming machine
- One-time Integrated FormingComplete feeding, vibrating and molding at one time, greatly improve construction speed.
- Multiple Shape AvailableAdjustable mold for U-shaped, trapezoidal and rectangular ditch to meet different project demands.
- High Density & Smooth SurfaceHigh-frequency vibration makes concrete compact, neat edge and smooth inner wall without secondary finishing.
- Save Labor & CostNo need for bricklaying or precast plates, reduce manual work and cut construction cost obviously.
- Self-propelled & Easy OperationAutomatic walking design, simple operation, flexible movement on site, suitable for various outdoor engineering sites.

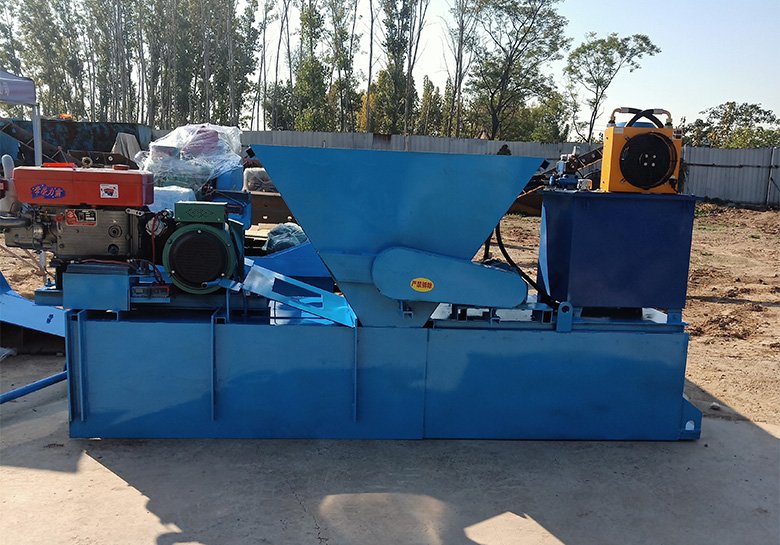

This concrete ditch forming machine is specially used for on-site continuous molding of irrigation canals, drainage ditches and water channels.It integrates feeding, vibration, extrusion and forming into one process. The machine can walk automatically and finish concrete lining in one time without prefabricated mould and manual plastering.It can make U-shaped, trapezoidal and rectangular ditches with smooth surface and high compactness. Widely applied in farmland irrigation, municipal drainage, road side ditch and water conservancy projects.
U-shaped hydraulic self-propelled water channel forming machine
| Model Dimensions | Can be customized according to customer drawings |
| Shape | U-shaped/Trapezoidal/Rectangular |
| Travel Mode | Hydraulic self-propelled |
| Travel Speed | 300 - 500 meters per day |
| Engine Power | 24/30/50kW |
| Hydraulic Pump Station Power | 5.5/7.5kW |
| Hydraulic Cutting Knife | Optional |
Trapezoidal hydraulic self-propelled water channel forming machine
| Model Dimensions | Can be customized according to customer drawings |
| Shape | U-shaped/Trapezoidal/Rectangular |
| Travel Mode | Hydraulic self-propelled |
| Travel Speed | 300-500 meters per day |
| Engine Power | 24/30/50kW |
| Hydraulic Pump Station Power | 5.5/7.5kW |
| Hydraulic Cutting Knife | Optional |
Rectangular hydraulic self-propelled water channel forming machine
| Model Dimensions | Can be customized according to customer drawings |
| Shape | U-shaped/Trapezoidal/Rectangular |
| Travel Mode | Hydraulic self-propelled |
| Travel Speed | 300-500 meters per day |
| Engine Power | 24/30/50kW |
| Hydraulic Pump Station Power | 5.5/7.5kW |
| Hydraulic Cutting Knife | Optional |
U-shaped steel wire rope traction water channel forming machine
| Model Dimensions | Can be customized according to customer drawings |
| Shape | U-shaped/Trapezoidal/Rectangular |
| Travel Mode | Wire rope traction |
| Travel Speed | 300-500 meters per day |
| Engine Power | 24/30/50kW |
| Motor power of the winch | 3/5.5kW |
| Hydraulic Cutting Knife | Optional |
Trapezoidal steel wire rope traction water channel forming machine
| Model Dimensions | Can be customized according to customer drawings |
| Shape | U-shaped/Trapezoidal/Rectangular |
| Travel Mode | Wire rope traction |
| Travel Speed | 300-500 meters per day |
| Engine Power | 24/30/50kW |
| Motor power of the winch | 3/5.5kW |
| Hydraulic Cutting Knife | Optional |
| Overall Dimensions | 5200x1860x2450mm |
| Total Machine Weight | 6500kg |
| Matched Power | 4105 diesel engine (50kw generator set) |
| Sizes of Curbstones that Can Be Produced | With a height within 600mm and a width within 1500mm |
| Vibration Method | Vibrating rod |
| Tires | Solid tires dedicated to the loader (Optional: 8 - wheel or 4 - wheel) |
| Mold Lifting Method | Hydraulic output, four - way lifting adjustment |
| Working Speed | 0 - 12.5m/min |
| Direction Control | Can be controlled by computer sensor or mobile phone |
| Travel Control | Electromagnetic speed regulation |
| Chassis | Special four - wheel drive axle for new trucks |
| Feeding Method | Screw hydraulic feeding |
