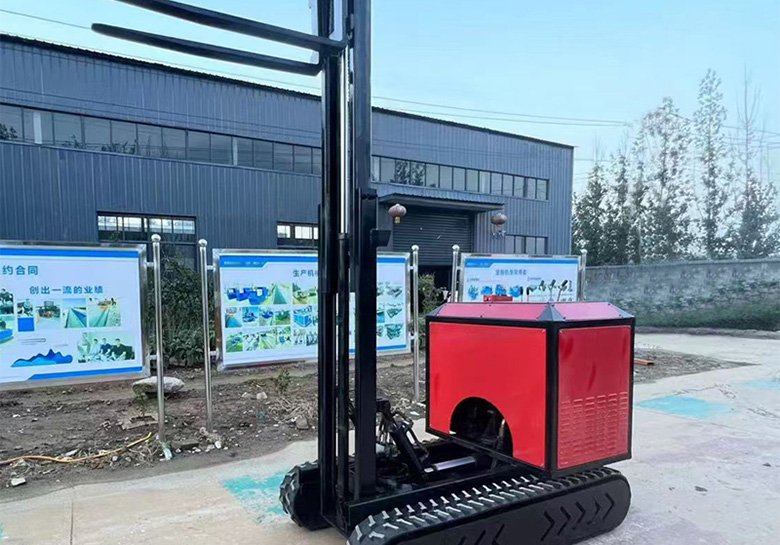

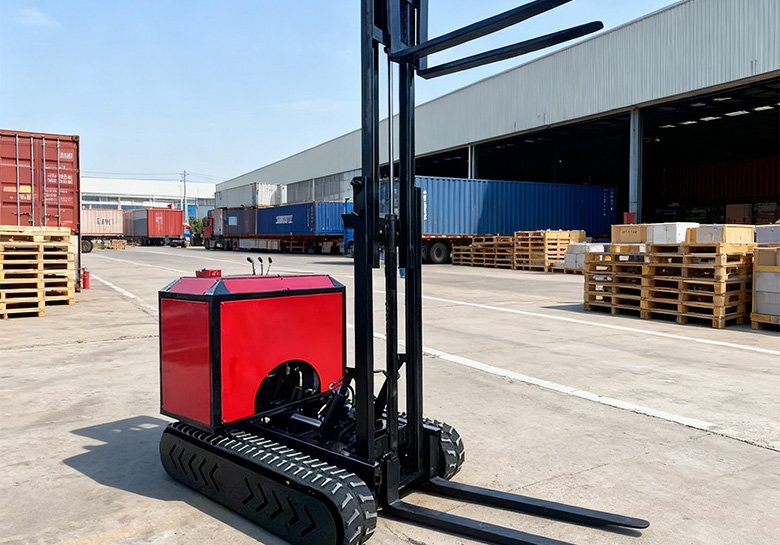

1T Electric Hydraulic Tracked Transporter
- Strong power performance: Low fuel consumption, high traction, good climbing and gripping performance, and strong transport capacity.
- Convenient loading and unloading: Hydraulic lifting and self-unloading functions reduce labor intensity and improve efficiency.
- Flexible operation: Small turning radius, highly maneuverable, suitable for operation in narrow spaces.

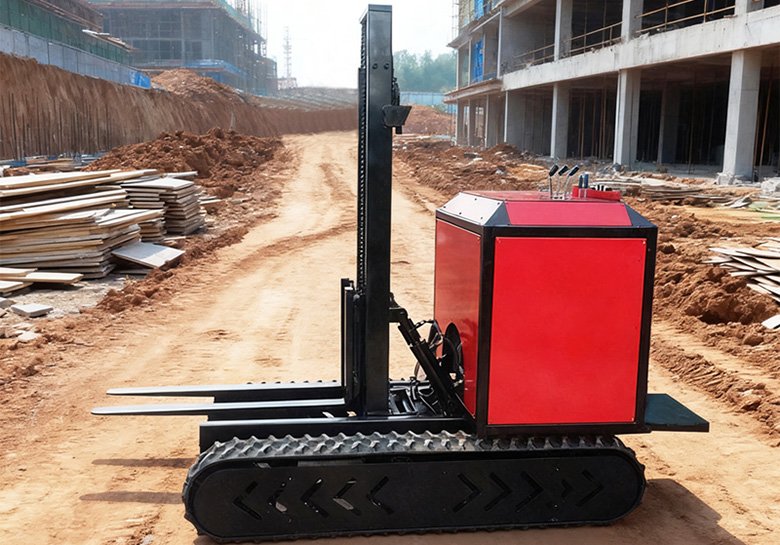

Wide applicability: It can travel freely in various complex terrains such as swamps, deserts, and mountains, adapting to different working scenarios.
Superior structural design: The body uses thickened plates, the chassis is reinforced, ensuring good durability, minimal damage to the ground, and excellent passability. It is equipped with one-button electric start for convenient operation.
CHASSIS CONFIGURATION PARAMETER | |
Overall machine dimensions | 2300*1000*1800mm |
Liting weight | 1T |
Travel speed | 0-5km/h |
Maximum climbing gradient | ≤30° |
Crawler model | 230×72×56 |
Travel motor | TM03 |
Control method | Wreless remote-controled electromagneticproportional valve |
Remote control distance | 200m |
Fork lifting height | 0-2.5m |
Mast width | 500mm |
Fork length | 1220mm(replaceable) |
Fork width | 100mm |
Mast forward extension | 650mm |
Mast height | 1800mm—3500mm |
