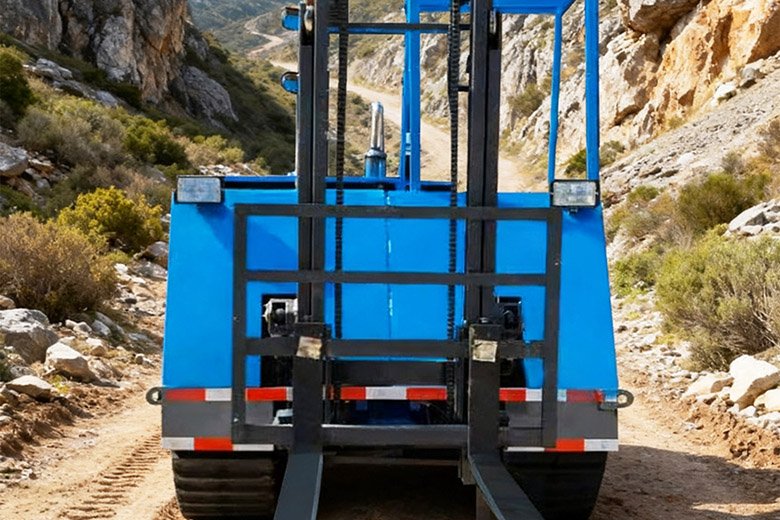

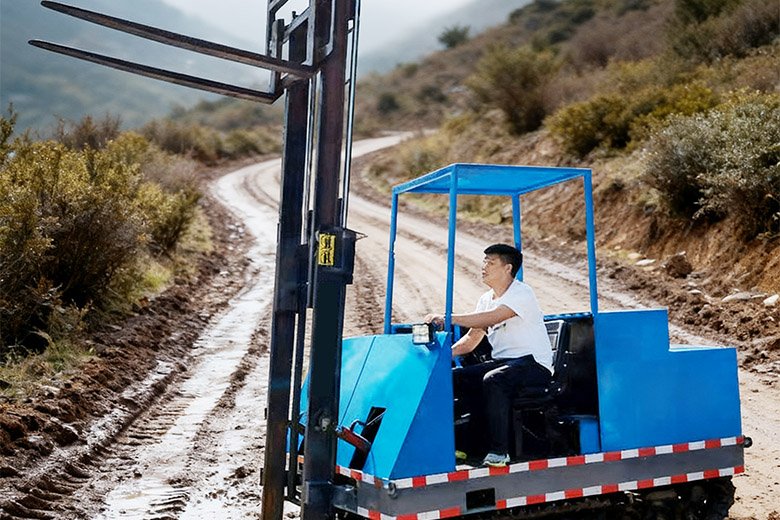

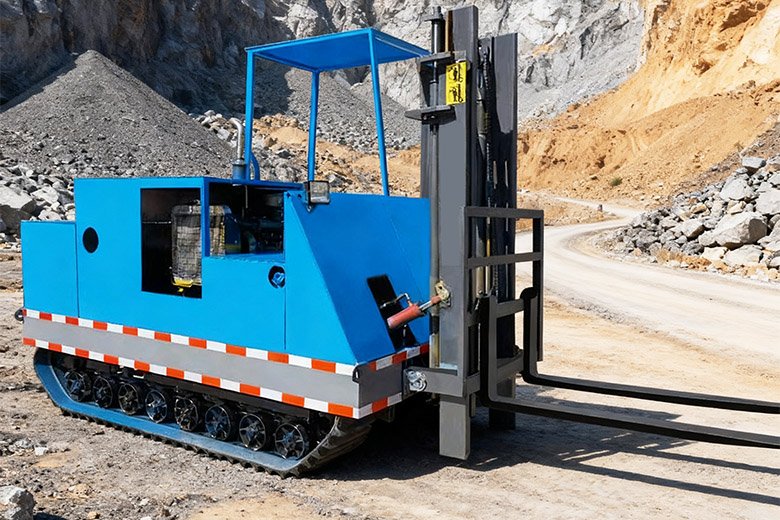

It has a powerful engine, easily handling a 3-ton loading task.The crawler design gives it excellent traficbility, enabling it to move smoothly through complex terrains ike mud and rough ground. The hydraulic system allows for precise control, ensuring smooth cargo loading, unloading, and driving control. With a low center of gravity and a large ground-contact area, it has high stability andis less ikely to roll over during operation. It can adapt to various harsh working conditions, has certain off-road capabilities, and can efficiently transport goods at outdoor work sites.In fields such as construction sites, mines, and agriculture, the 3-ton diesel-hydraulic crawler transporter can play a significant role in improving work efficiency and reducing labor costs.
CHASSIS CONFIGURATION PARAMETER | |||
Overaldimensions of the machine | 2500×1800×2000mm(excluding forks) | Fork lift height | 0-3m |
Lifting weight | 4T | Mast width | 1070mm |
Traveling speed | 0-5km/h | Fork length | 1070mm(replaceable) |
Maximum climbing gradient | ≤30° | Fork width | 122mm |
Crawler model | 350×90×60 | Mast height | 1800mm—3500mm |
Engine | Cummins 6BT with cooling system | Air-conditioning system | Heating and cooling air |
Drive motor | TM07 reduction motor | Control method | Manual lever driving |
