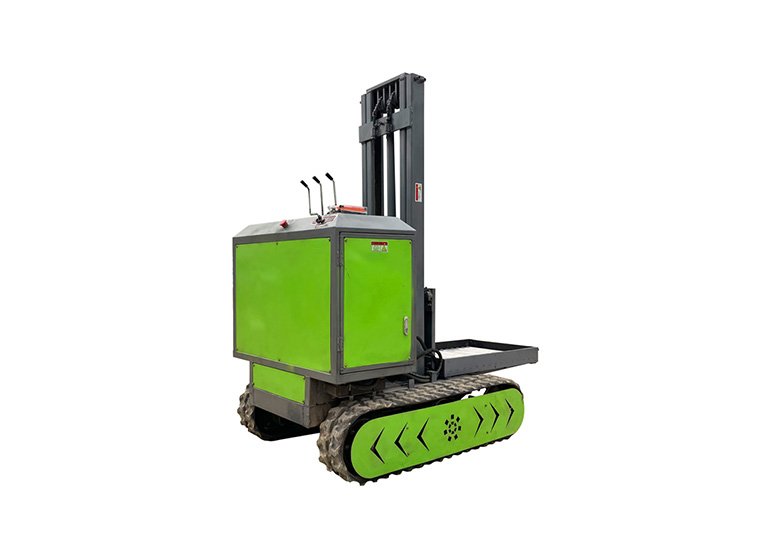

500kg gasoline hydraulic tracked transporter
Product Description:
- Its relatively small size gives it good maneuverability in narrow spaces or complex terrain, allowing it to turn and maneuver flexibly, facilitating transport operations in confined spaces.
- It is widely used in various locations such as farmland, orchards, nurseries, construction sites, and logistics warehouses, meeting the cargo handling needs of different scenarios.
Product Details
A gasoline-hydraulic tracked transporter is a material handling device that uses a gasoline engine as its power source and a hydraulic system to drive the tracks. It boasts strong power and maneuverability, enabling it to flexibly transport heavy objects across complex terrain.
Specifications
CHASSIS CONFIGURATION PARAMETER | |
Overall machine dimensions | 1800*1000*2000mm |
Lifting weight | 0.5T |
Travel speed | 0-5km/h |
Maximum dimbing gradient | ≤30° |
Crawler track model | 180×72×42 |
Engine | GX390 gasoline engine |
Drive motor | Model 310 |
Control method | Manual operating lever plus remote-controlled travel |
The lifting height of the fork | 0-2.5m |
Mast width | 500mm |
Fork length | 1260mm(replaceable) |
Fork width | 100mm |
Mast height | 1800mm—3500mm |
Application

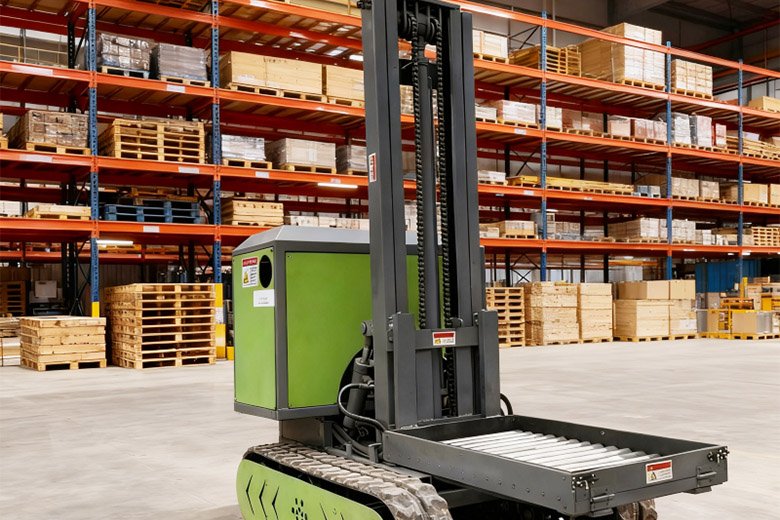

案例图_0001_500kg汽油液压履带搬运车 使用场景 (3) (1) 拷贝

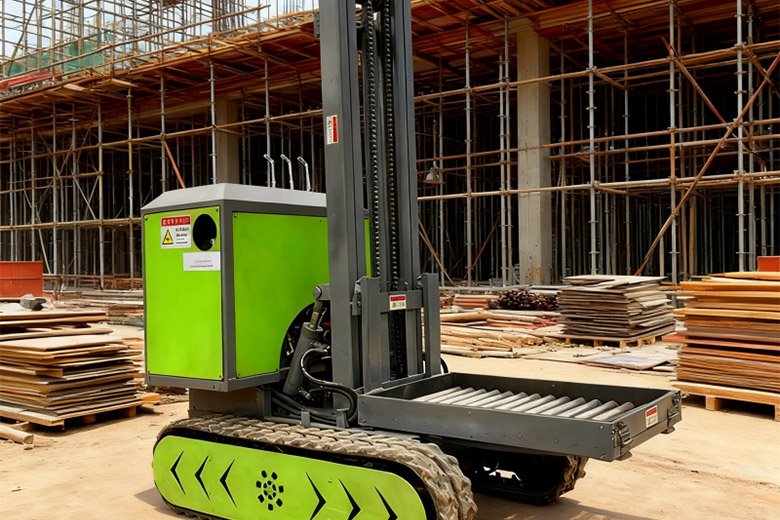

案例图_0000_500kg汽油液压履带搬运车 使用场景 (4) (1) 拷贝

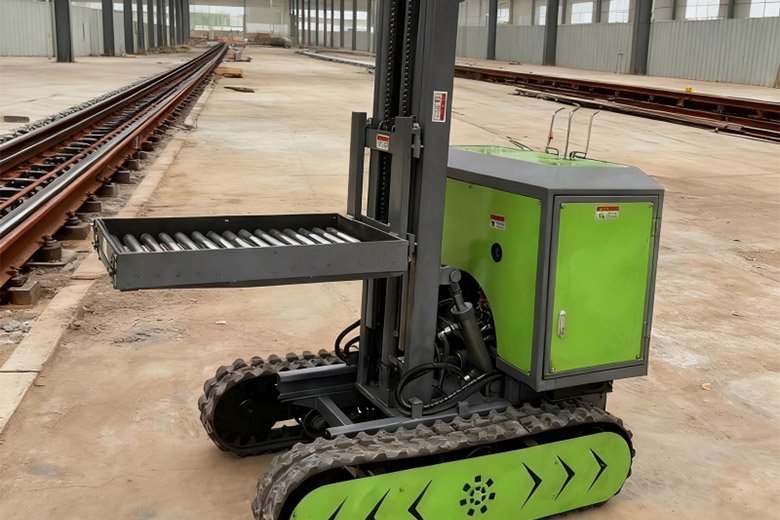

案例图_0003_500kg汽油液压履带搬运车 使用场景 (1) (1) 拷贝

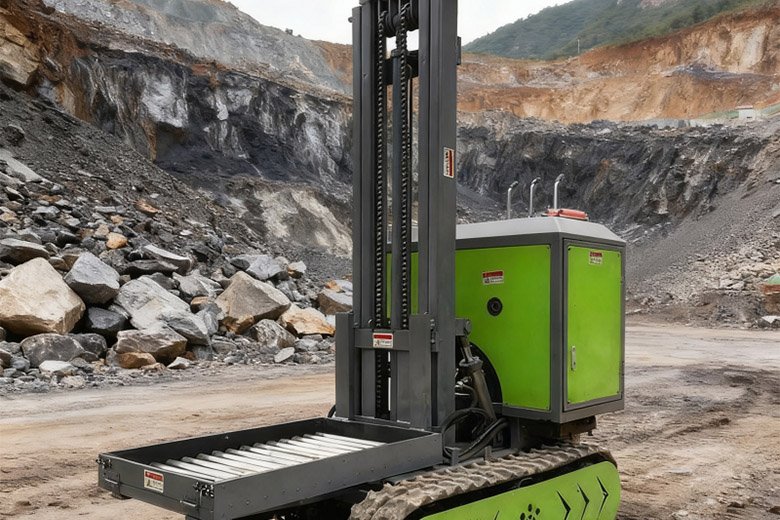

案例图_0002_500kg汽油液压履带搬运车 使用场景 (2) (1) 拷贝
