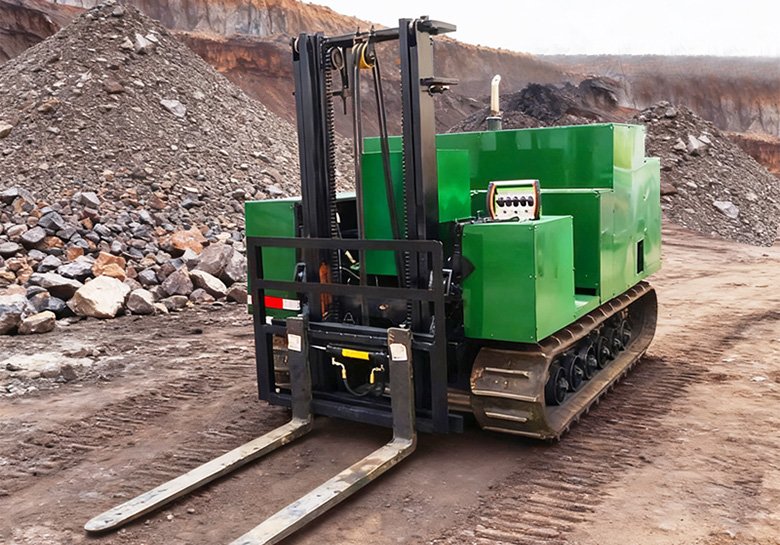

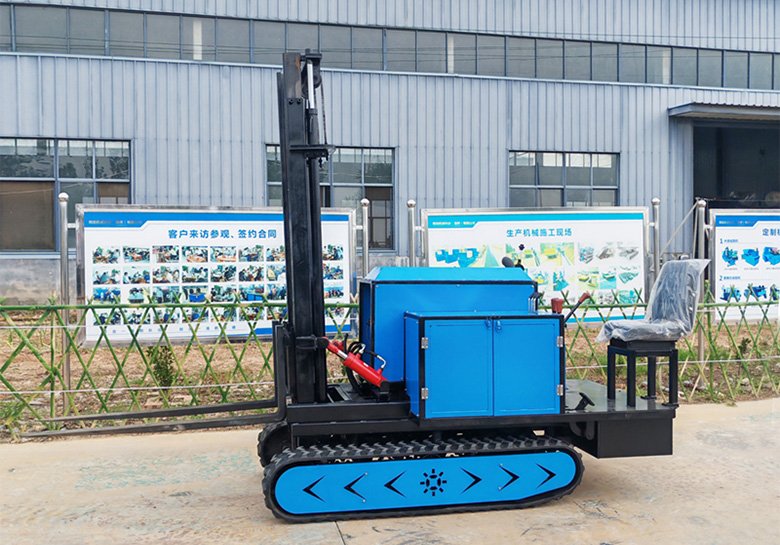

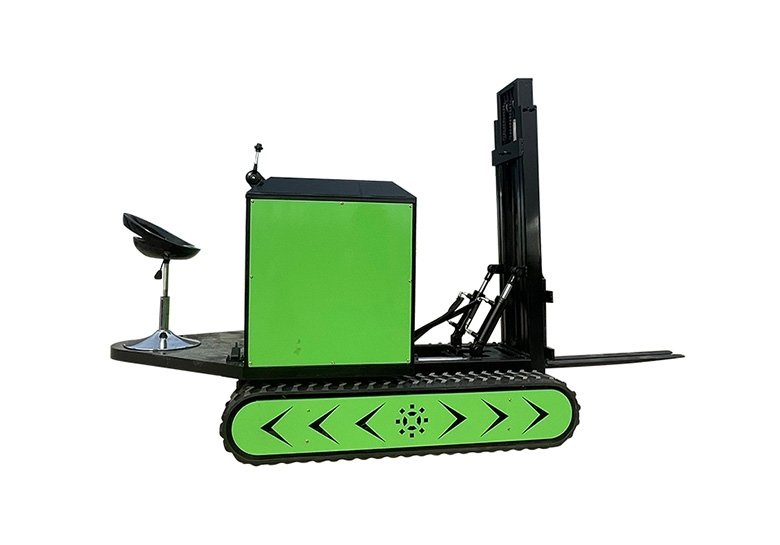

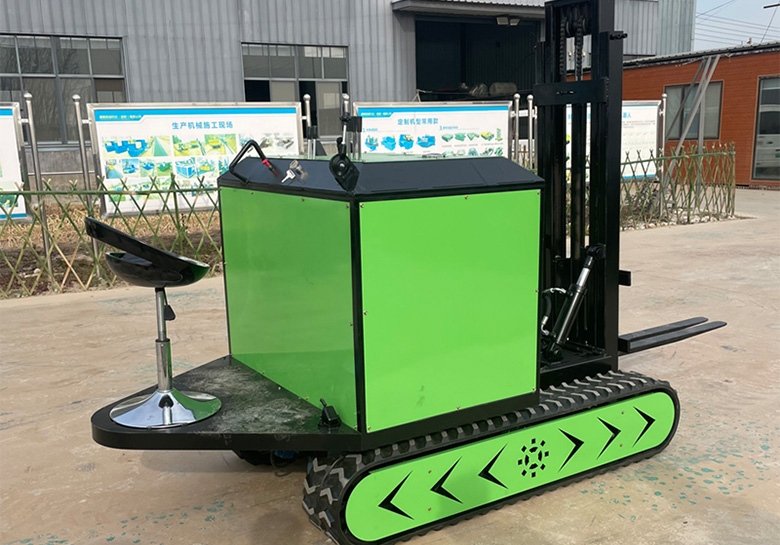

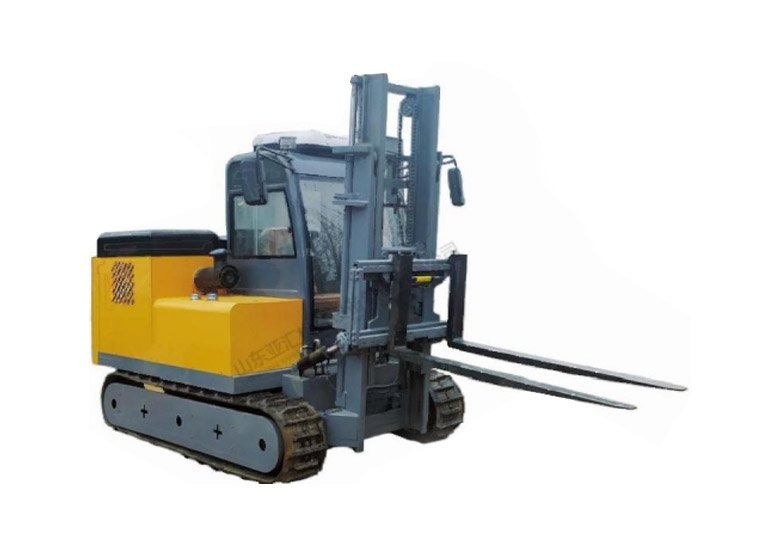

Tracked material handlers are available with three power options: electric, diesel, and hydraulic. Utilizing a tracked chassis, they offer excellent maneuverability, easily handling complex working conditions such as mud, steep slopes, and narrow passages. The electric version is energy-efficient, environmentally friendly, quiet, and low-cost, the diesel version offers ample power and long-lasting range; and the hydraulic version provides precise control and stable load-bearing capacity. With a compact structure, simple operation, flexible steering, and durable construction, these vehicles significantly improve material handling efficiency and are widely applicable to agriculture, forestry, engineering, and mining, making them an excellent choice for heavy-duty material handling in various terrains.
-

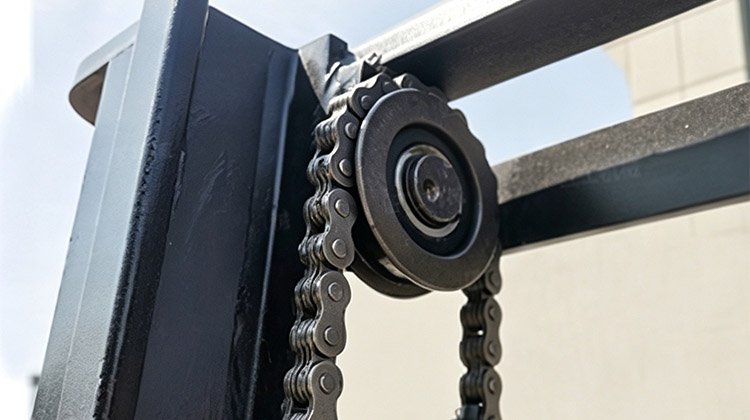

[01]Mast chain -

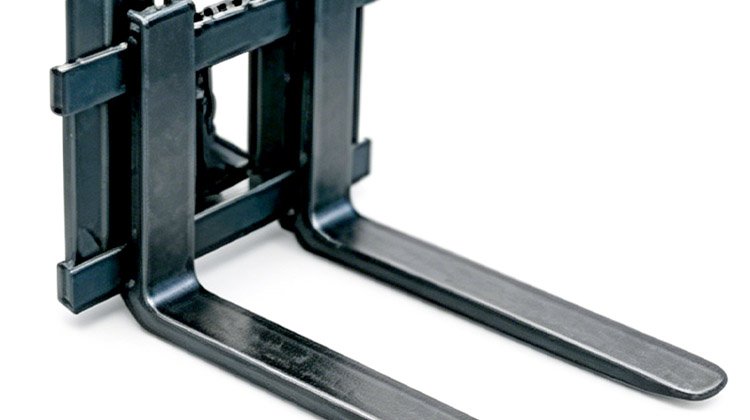

[02]Reinforced forks -

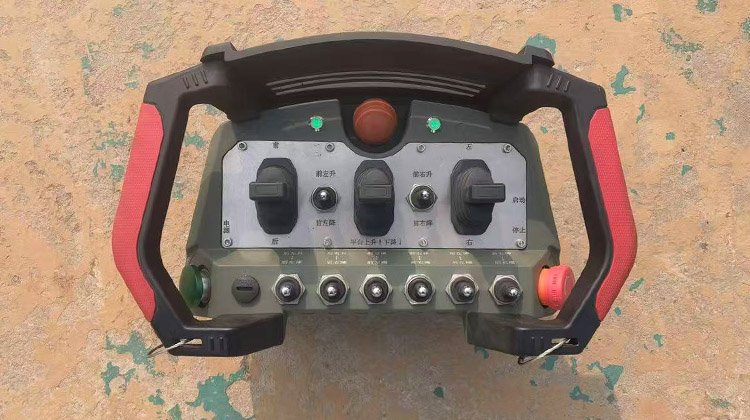

[03]Fully automatic remotecontro
| Overall Dimensions (L×W×H) | 2200×800×1950mm | 1800×1000×2000mm | 2300×1000×1800mm | 2500×1800×2000mm |
| Lifting weight | 0.3T | 0.5T | 1T | 4T |
| Travel speed | 0-3km/h | 0-3km/h | 0-3km/h | 0-5km/h |
| Maximum gradeability | ≤30° | ≤30° | ≤30° | ≤30° |
| Track size | 1200mm | 180×72×42 | 230×72×56 | 350×90×60 |
| Engine | 48v1.5kw*2 | GX390 gasoline engine | 5.5kW DC brushless motor | 50kw |
| Drive motor | RV75 | 310 | TM03 | TM07 geared motor |
| Control method | Industrial Remote Control | Manual operation with remote control | Wireless remote control electromagnetic proportional valve | Manual lever operation |
| Fork lifting height | 0-4m | 0-2.5m | 0-2.5m | 0-3m |
| Mast dimensions (W × H) | 600×1800-2500mm (replaceable) | 500×1800-3500mm | 500×1800-3500mm | 1070mm×1800-3500mm |
| Fork dimensions (L × W) | 7500×100mm (replaceable) | 1260×100mm (Replaceable) | 1220×100mm (Replaceable) | 1070mm×122mm (Replaceable) |
