Lifting chassis
Product Description:
- DC Motor/AC Motor
- Gearbox Drive
- Direct Hydraulic Motor
- Mechanical Transmission Drive
- Hydraulic Transmission Drive
- High Transmission Efficiency
- Stepless Speed Regulation
- Large Starting Torque
- Customizable Chassis Size
- Customizable Track Width
- Customizable Load Capacity
- Custom Design Custom Specification
Product Details

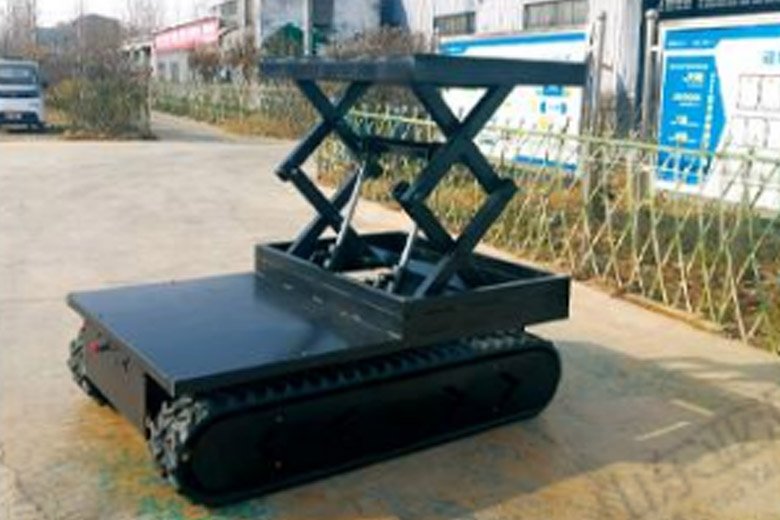

Tracked lifting platforms utilize a tracked chassis, adapting to complex terrains such as mud and slopes, offering flexible movement without the need for repeated site relocation. They provide stable lifting, reliable load-bearing capacity, and are simple and safe to operate, making them ideal for construction sites, equipment maintenance, landscaping, factory installations, and other scenarios, thus representing the best equipment for high-altitude operations.
-

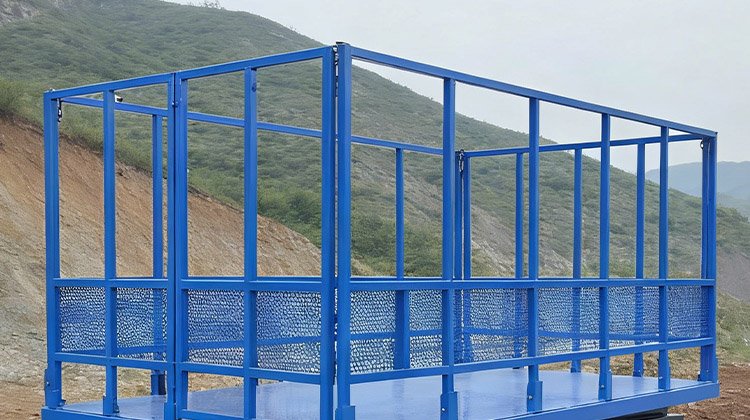

[01]Operating Platform -

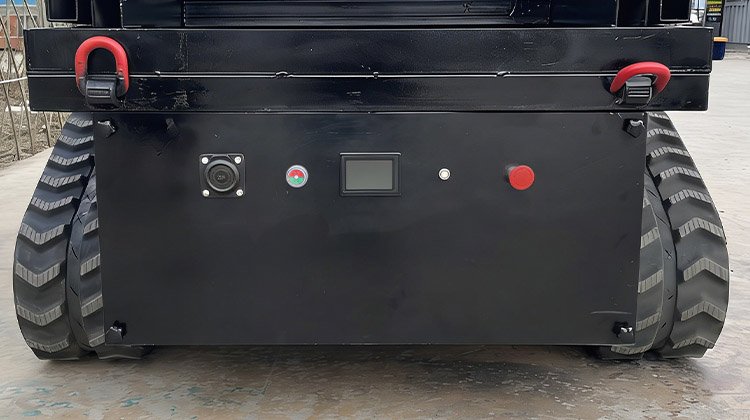

[02]Electronic control panel -

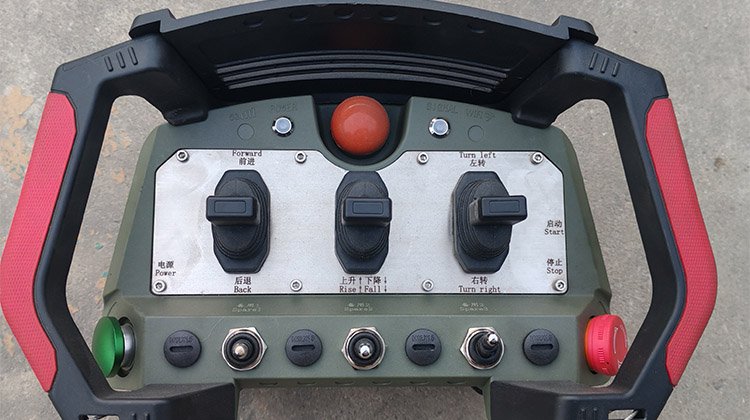

[03]Industrial remote control -

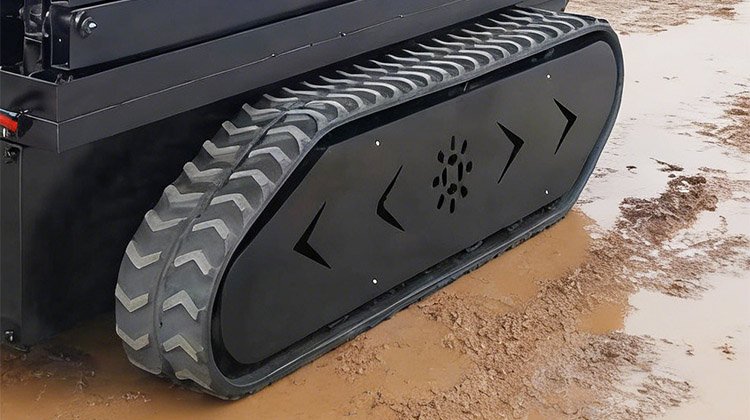

[04]Track assembiy
Specifications
| Overall Dimensions(LxWxH) | 1000800300mm | 15001000420mm | 20001500500mm | 24001500600mm |
| Motor Power | 800W DC brushless motor * 2 | 1.5Kw*2 | 4kw*2 | 7.5kw*2 |
| Gear Reducer | RV50 | RV75 | RV130 | Planetary gear reducer |
| Voltage | 48V | 48V | 72v | 72v |
| Travel Speed | 0-2km/h | 0-2km/h | 0-2km/h | 0-2km/h |
| Load Capacity | 0-0.5T | 0-1T | 0-2T | 0-3T |
| Remote Control Distance | 0-200m | 0-200m | 0-200m | 0-200m |
Application

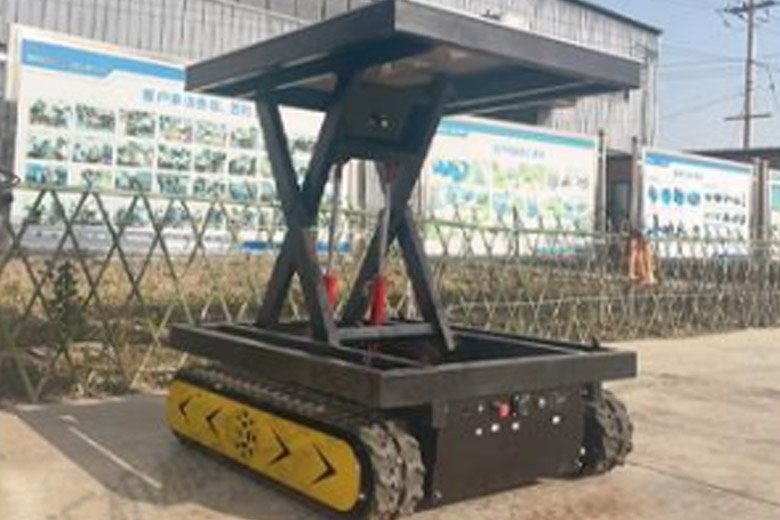

Lifting chassis

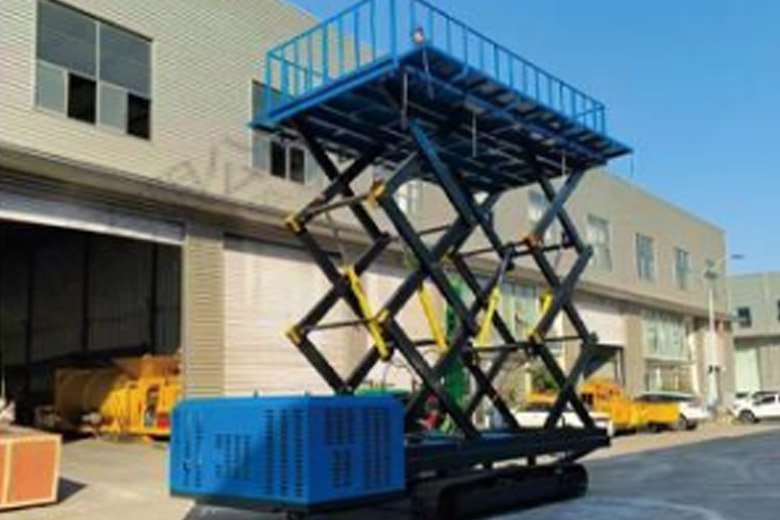

Lifting chassis

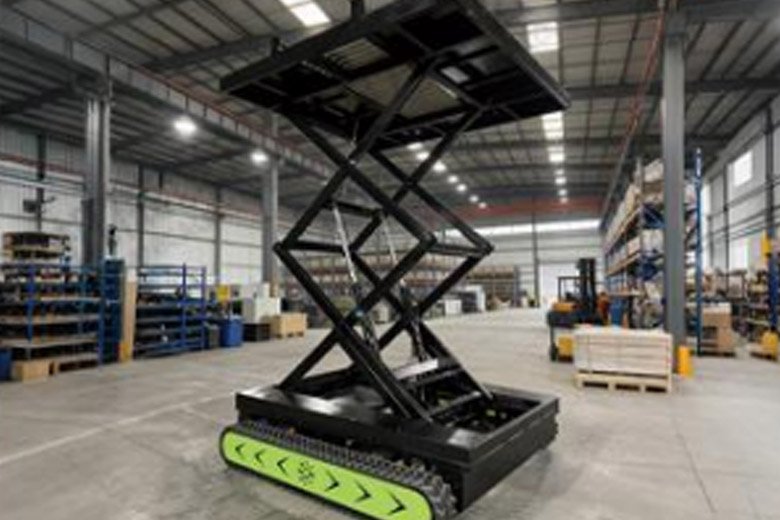

Lifting chassis
Lifting chassis
