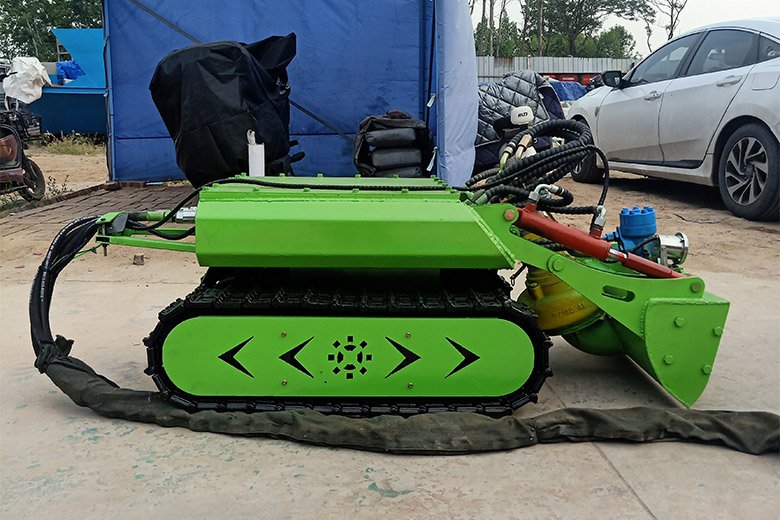

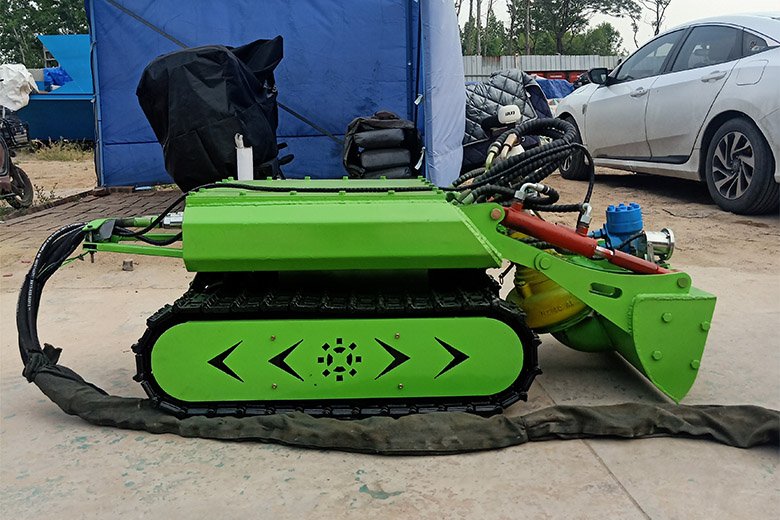

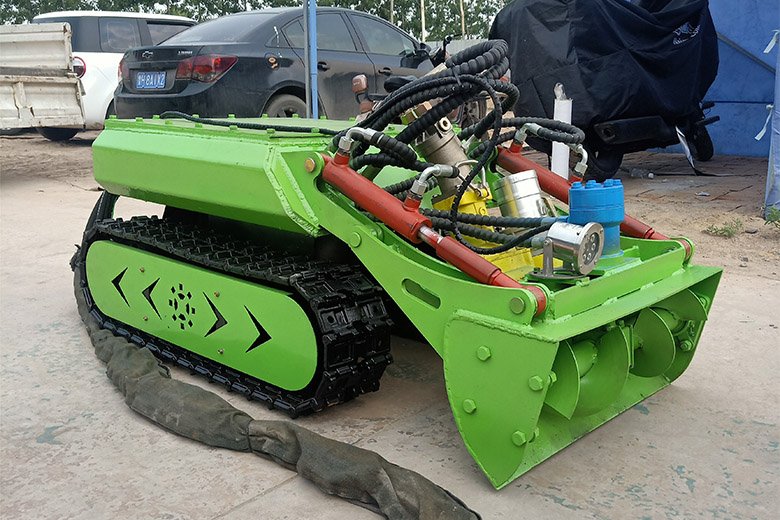

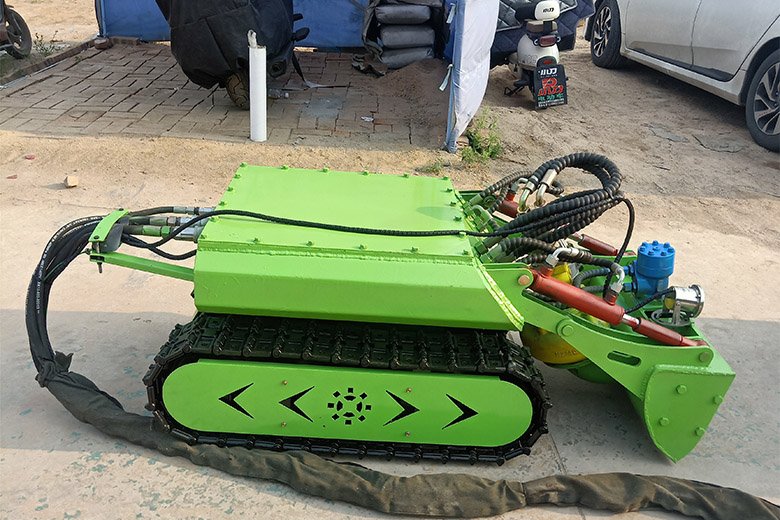

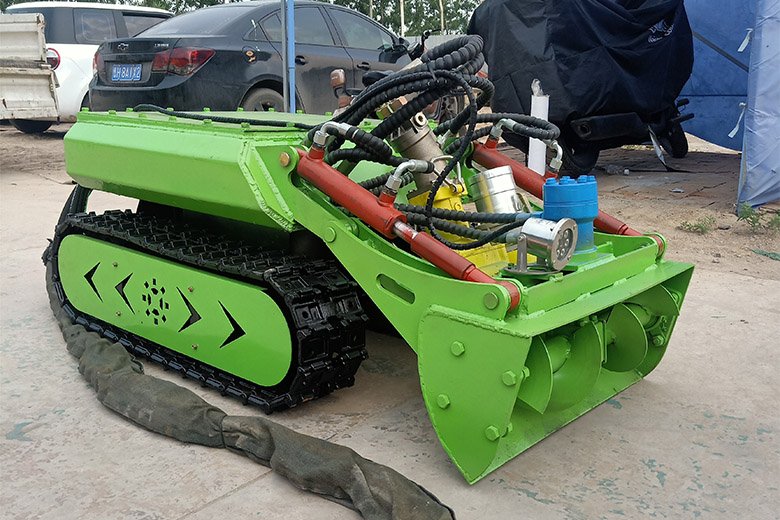

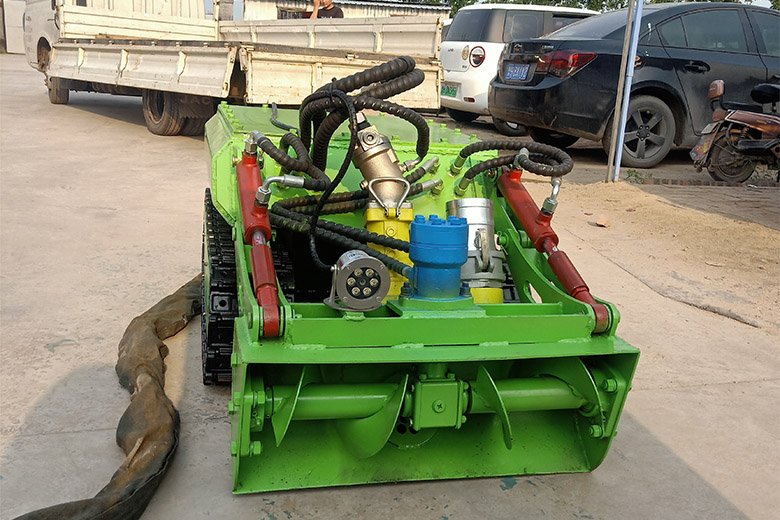

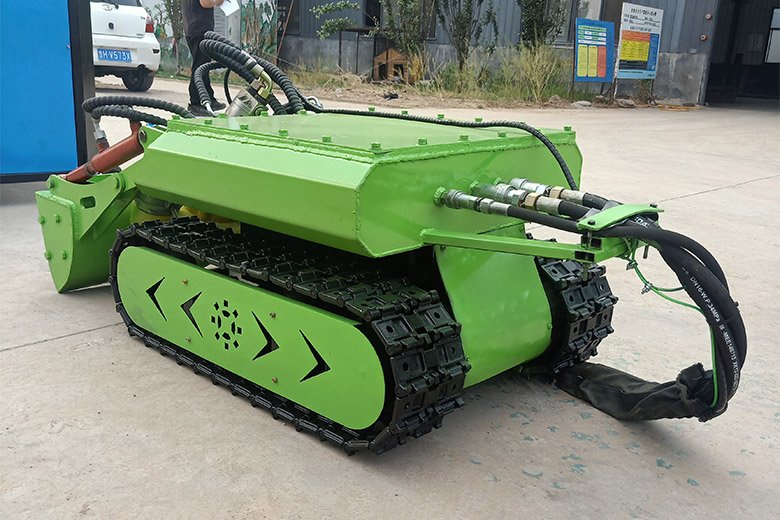

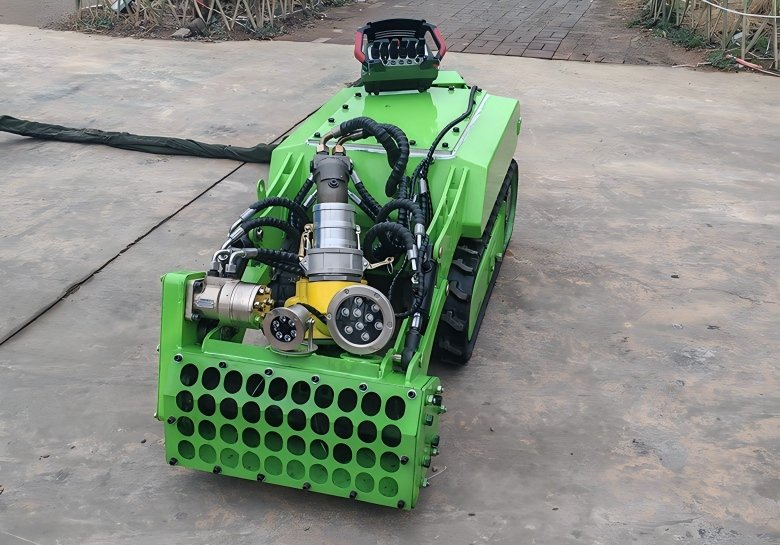

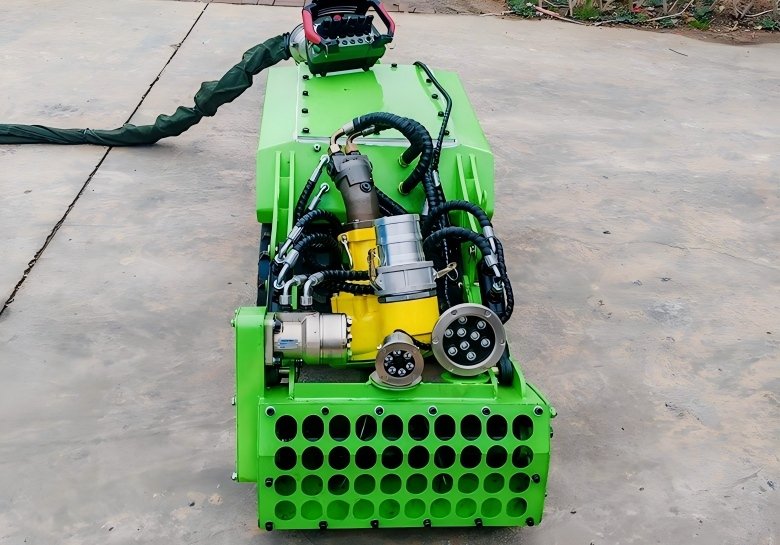

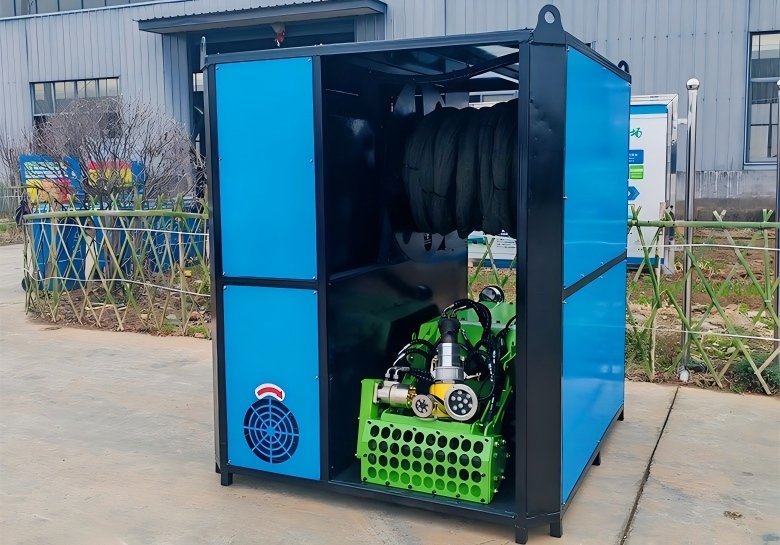

Carbon steel Underwater Dredging Robot

Name: Carbon Steel
Brand: Yahui Machinery
Rating: 4.8 (21 reviews)

Product Description:

Large-scale ride - on and liftable dredging robots are easy to operate. The ride- on design makes it as easy for operators to get started as driving a vehicle, reducing the operation dificulty.
Secondly,its itable function is powerful, enabling precise dredging in working environments with different water depths. It has good mobility.
Equipped with an advanced inteligent control system, it can achieve automatic positioning, path planning, and inteligent obstacle avoidance.
This not only improves the operation accuracy andeficency but also reduces the work intensity of personnel.
It is also equipped with a monitoring and communication system,which facilitates operators to observe the operation situation in real- time.In addition,it can be equipped with a variety of working devices according to different needs, improving its versatility and adaptability.

(0) Reviews

Product Details

Specifications

Parameter Table of Dredging Robot
Category	Item	Equipment Parameter
Robot	Material	Q235 Ordinary Carbon Steel
	Overall Dimension of Robot	Length 1500Width 600Height 600mm
	Track Model	1807232
	Robot Weight	About 260kg
	Travel Speed	0-2km/h
	Driving Mode	Hydraulic Motor
	Headlight	2pcs Underwater Waterproof LED Headlights
	Waterproof Camera	1pc 5MP HD Camera
	Slurry Pump	4-inch Hydraulic Slurry Pump
	Maximum Suction Particle Size	20-40mm
	Water Pump Displacement	150m³/h
	Water Pump Head	20m
	Sewage Pipe	30m Steel Wire Hose (Optional)
	Flushing Nozzle	4pcs High-pressure Flushing Nozzles Installed at the Front
Hydraulic Station	Valve Body	5-way Electromagnetic Proportional Valve
	Control Mode	High-end Engineering Remote Controller
	Control Box	Q235 Ordinary Carbon Steel
	Customer-provided Hydraulic Station	Pressure 20MPa, Flow Rate 60-80L
Suggested Selling Price: 68000
