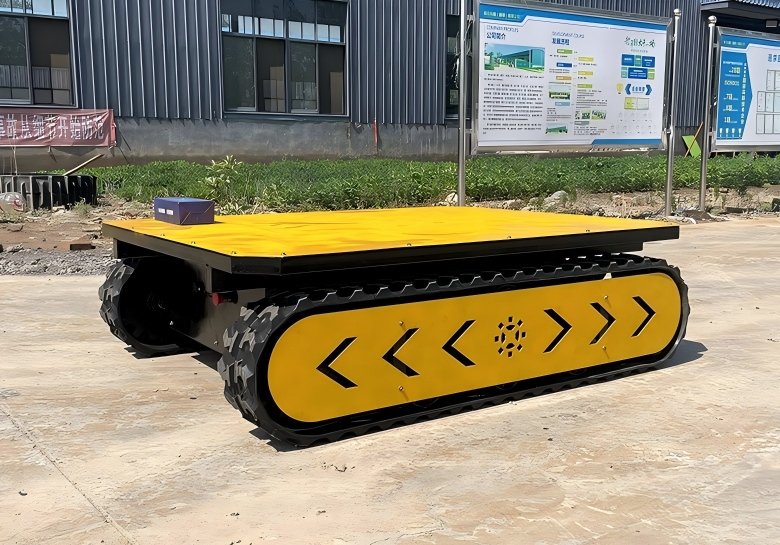

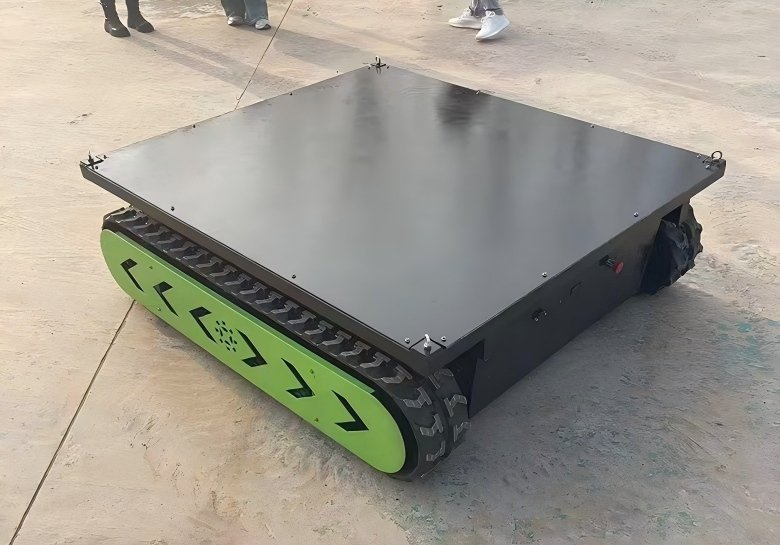

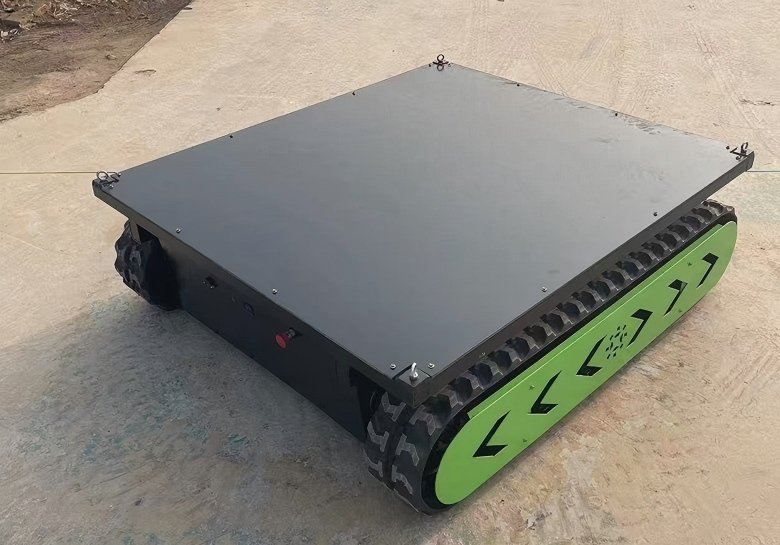

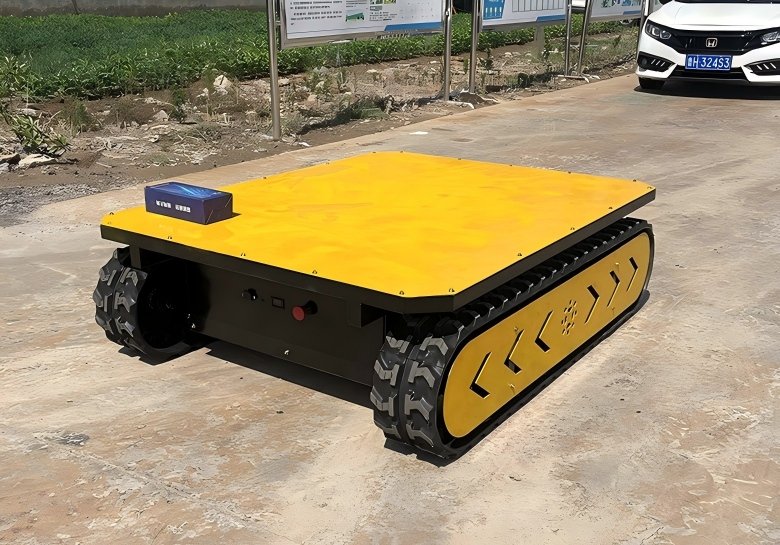

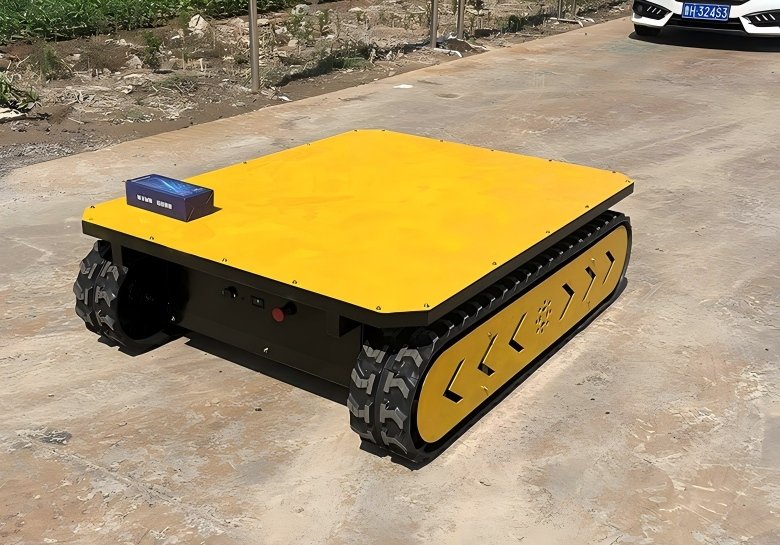

Electric tracked chassis
Product Description:
- It has an extremely small turning radius and can achieve zero turn (turn in place).
- The crawler tracks are not prone to slipping, and their good traction adhesion performance is conducive to exerting a large tractive force.
- It has super climbing and obstacle crossing capabilities and can even climb stairs.
- The vehice body shell is made of stainless steel, which is sturdy and durable, with excellent overal protection performance.
- It is powered by batteries, eliminating the need for an external power source, and can be used for outdoor operations.
Product Details

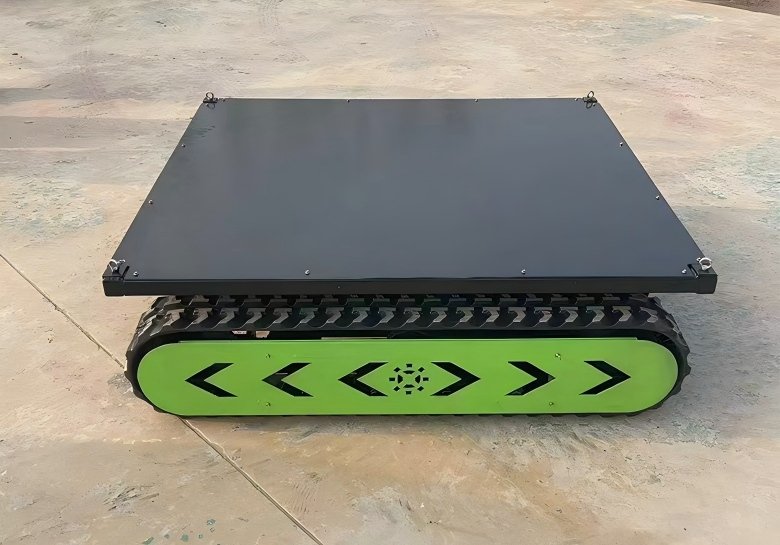

The remote-controlled tracked chassis is a tracked mobile chassis that is electrically driven and operated remotely. It has a large support area, making it suitable for operation in complex environments such as soft ground and muddy conditions. It also features low sag, low rolling resistance, and good off-road mobility.
Specifications
| Parameter | Value |
| Crawler track | 180x72x48 |
| Motor | 72V, 1.5kw |
| Reducer | 75, 1:60 |
| Drive wheel | Ø285 |
| Load - bearing wheel | Ø140 |
| Carrier wheel | Ø140 |
| Floating wheel | 桅150 |
| Control method | 200m wireless remote control system |
| Whether other functions can be added | Additional functions can be added |
| Remarks | All parameters can be customized according to customer requirements. |
